![vtc-40-a KDL 100VM](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/vtc-40-a.jpg)
VTC-40A
- 600x400x400 XYZ (mm)
- Fanuc Oi-MF
- Small Footprint
- Powerful Cutting with Up to 10 hp Motor
- Double-Anchored Ball Screw
- Reinforcement of Rigidity With the 2×3 LM Block
- Creates Highest Quality of Precision Positioning & Prevents Thermal Growth
- Increases the Weight Load
- Makes for a Diminished Weight, High Rigidity & Heat Discharge
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/table-type.png)
700 x 400
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/turret.png)
12 Tools
14 Tools
14 Tools
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/spindle.png)
8K RPM
10K RPM
10K RPM
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/tool-change-time.png)
1.6 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/chip-to-chip.png)
3.2 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/weight.png)
200 kg
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/travel-time.png)
1890 IPM
![vtc-40-b KDL 100VM](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/vtc-40-b.jpg)
VTC-40B
- 600x400x400 XYZ (mm)
- Fanuc Oi-MF
- Small Footprint
- Powerful Cutting with Up to 10 hp Motor (15Hp OPT
- Double-Anchored Ball Screw
- Reinforcement of Rigidity With the 2×3 LM Block
- Creates Highest Quality of Precision Positioning & Prevents Thermal Growth
- Increases the Weight Load
- Makes for a Diminished Weight, High Rigidity & Heat Discharge
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/table-type.png)
700 x 400
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/exchange-arm.png)
20 Tools
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/spindle.png)
8K RPM
12K RPM
12K RPM
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/tool-change-time.png)
1.2 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/chip-to-chip.png)
2.8 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/weight.png)
200 kg
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/travel-time.png)
1890 IPM
![kdm43vcd KDL 100VM](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/kdm43vcd.jpg)
KDM-43VCD (Dual Pallet)
- 600x430x570 XYZ (mm)
- Fanuc Oi-MD
- Powerful 20 Hp Spindle
- 2-Piece Curvic Coupling
- Table Can Be Setup While Workpiece Is Being Machined On the Machine Side
- Provides High Rigidity, High Accuracy & Best Coupling In Its Class
- Allows for Maximum Productivity & Volume
- Creates Highest Quality of Precision Positioning & Prevents Thermal Growth
- BEST VALUE
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/pallet-changer.png)
700 x 475
700 x 475
700 x 475
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/exchange-arm.png)
30 Tools
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/spindle.png)
12K RPM
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/tool-change-time.png)
1.3 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/chip-to-chip.png)
3.9 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/weight.png)
400 kg
per pallet
per pallet
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/travel-time.png)
1890 IPM
![kn-40va KDL 100VM](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/kn-40va.jpg)
KN-40Va 500 / 1200 / 2000 (Non APC)
- 500x350x400 XYZ (mm) / 1200mm (X) / 2000mm (X)
- Fanuc Oi-MF
- Powerful Cutting with Up to 10 hp Motor
- Dual Zone Capable
- Coolant Through the Spindle Preparation – Capable of 1000 psi
- Rigid Tapping
- Remote Pulse Generator
- Screw-Type Chip Auger
- Production Line Application
- Reduce Set-Up Time
- Prevents Chip Build Up on Bed by Disposing Chips toward Conveyor
- Fast Load & Unload of Parts
- Ideal for High Production
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/table-type.png)
700 x 400
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/turret.png)
12 Tools
14 Tools
14 Tools
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/spindle.png)
8K RPM
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/tool-change-time.png)
1.6 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/chip-to-chip.png)
3.2 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/weight.png)
500 kg
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/travel-time.png)
1890 IPM
![KN-40Vb KDL 100VM](http://midstatesintl.wpengine.com/wp-content/uploads/2021/02/KN-40Vb.jpg)
KN-40VB 500 / 1200 / 2000 (Non APC)
- 500x350x400 XYZ (mm) / 1200mm (X) / 2000mm (X)
- Fanuc Oi-MF
- Traveling Column
- The fixed table design works well when fixtures are heavy or hydraulic and wiring is complicated. In such cases, it is best to have the table remain stationary.
- Fast side-mounted exchange arm style tool changer.
- Fast and powerful for milling, drilling, and tapping.
- Fast acceleration and deceleration and nearly
- Heavy fixtures
- Complicated piping and wiring
- Palletized transfer
- Production Line Application
- Long parts that extend outside of the machine
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/table-type.png)
700 x 400
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/exchange-arm.png)
20 Tools
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/spindle.png)
8K RPM
12K RPM
12K RPM
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/tool-change-time.png)
1.2 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/chip-to-chip.png)
3.2 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/weight.png)
500 kg
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/travel-time.png)
1890 IPM
![kn-40va KDL 100VM](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/kn-40va.jpg)

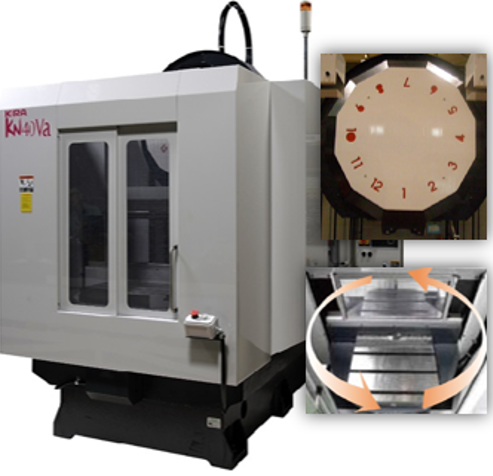

KN-40Va-500 2APC (Dual Pallet)
- 500x350x400 XYZ (mm)
- Fanuc Oi-MF
- Small Footprint
- 2-Piece Curvic Coupling / Pallet Rotation
- Table Can Be Setup While Workpiece Is Being Machined On the Machine Side
- Double-Anchored Ball Screw
- Provides High Rigidity, High Accuracy & Best Coupling In Its Class
- Allows for Maximum Productivity & Volume
- Creates Highest Quality of Precision Positioning & Prevents Thermal Growth
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/pallet-changer.png)
600 x 350
600 x 350
600 x 350
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/turret.png)
12 Tools
14 Tools
14 Tools
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/spindle.png)
8K RPM
10K RPM
10K RPM
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/tool-change-time.png)
1.6 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/chip-to-chip.png)
3.2 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/weight.png)
100 kg
per pallet
per pallet
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/travel-time.png)
1890 IPM
![KN-40Vb-500mm KDL 100VM](http://midstatesintl.wpengine.com/wp-content/uploads/2021/02/KN-40Vb-500mm.jpg)
KN-40Vb-500 2APC (Dual Pallet)
- 500x350x400 XYZ (mm)
- Fanuc Oi-MF
- Powerful Cutting with Up to 10 hp Motor
- 2-Piece Curvic Coupling
- Table Can Be Setup While Workpiece Is Being Machined On the Machine Side
- Double-Anchored Ball Screw
- Provides High Rigidity, High Accuracy & Best Coupling In Its Class
- Allows for Maximum Productivity & Volume
- Creates Highest Quality of Precision Positioning & Prevents Thermal Growth
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/pallet-changer.png)
600 x 350
600 x 350
600 x 350
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/exchange-arm.png)
20 Tools
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/spindle.png)
8K RPM
12K RPM
12K RPM
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/tool-change-time.png)
1.2 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/chip-to-chip.png)
2.8 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/weight.png)
100 kg
per pallet
per pallet
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/travel-time.png)
1890 IPM
