KDL 100VM

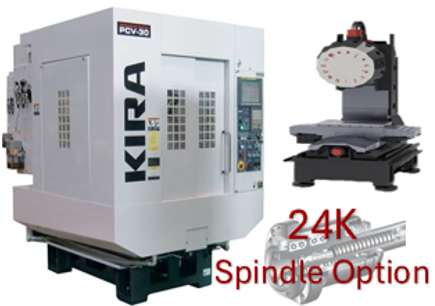

PCV-30 Vertical

  • 500 / 300 / 300 XYZ (mm)
  • Fanuc Control OI-MD
  • Small Footprint
  • High Speed, High Accuracy, High Rigidity
  • Powerful Cutting with Up to 10 hp Motor
  • Rigid Tapping & Direct Drive
  • High-Speed Servo Driven ATC
  • Allows for More Productivity
  • Additional 200mm Y-Axis Stroke for ergonomic loading
  • Precise Cuts & Elimination of Vibration Associated with Belt Drives
660 x 350
15 Tools
21 Tools
10K RPM
15K RPM
24K RPM
1.3 sec
1.9 sec
2200 kg
1890 IPM
DOWNLOAD BROCHURE
CONTACT US
PRICING
KDL 100VM

PCV-31-500 Vertical

  • 500 / 300 / 300 XYZ (mm)
  • Fanuc Control Oi-MF
  • Small Footprint
  • High Rigidity / Strong Bed Construction
  • Special Design for excellent chip evacuation
  • Rigid Tapping & Direct Drive
  • High-Speed Servo Driven ATC
  • Small Footprint
  • Designed for Gantry Loader & automation
  • Additional 200mm Y Axis Stroke for ergonomic loading
  • Direct drive provides Precise Cuts & Elimination of Vibration
800 x 400

15 Tools
21 Tools

12K RPM
15K RPM
24K RPM
1.1 sec
2.0 sec
2800 kg
2362 IPM
DOWNLOAD BROCHURE
CONTACT US
PRICING
KDL 100VM

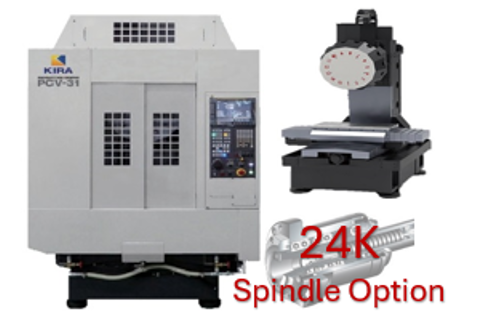

PCV-31-700 Vertical

  • 700 / 300 / 300 XYZ (mm)
  • Fanuc Control Oi-MF
  • Small Footprint
  • High Rigidity / Strong Bed Construction
  • Special Design for excellent chip evacuation
  • Rigid Tapping & Direct Drive
  • High-Speed Servo Driven ATC
  • Small Footprint
  • Designed for Gantry Loader & automation
  • Additional 200mm Y-Axis Stroke for ergonomic loading
  • Direct drive provides Precise Cuts & Elimination of Vibration
800 x 400
15 Tools
21 Tools
12K RPM
15K RPM
24K RPM
1.1 sec
2.0 sec
3000 kg
2204 IPM
DOWNLOAD BROCHURE
CONTACT US
PRICING
KDL 100VM

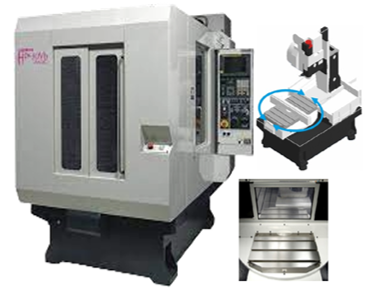

HPC-30VB 2-APC (Dual Pallet)

  • 350 x 290 x 320 XYZ (mm)
  • Small Footprint
  • 2-Piece Curvic Coupling / Pallet Rotation
  • Table Can Be Setup While Workpiece Is Being Machined On the Machine Side
  • Double-Anchored Ball Screw
  • Provides High Rigidity, High Accuracy & Best Coupling In Its Class
  • Allows for Maximum Productivity & Volume
  • Creates Highest Quality of Precision Positioning & Prevents Thermal Growth
500 x 300
500 x 300
20 Tools
12K RPM
15K RPM
24K RPM
0.7 sec
1.7 sec
1000 kg
per pallet
2205 IPM
DOWNLOAD BROCHURE
CONTACT US
PRICING
KDL 100VM

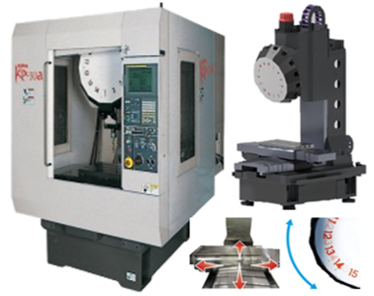

KPC-30A 500 / 700MM

  • 500 x 300 x 380 XYZ (mm)
  • Fanuc Oi-MF
  • Small Footprint
  • Powerful Cutting with Up to 10 hp Motor
  • Rigid Tapping & Direct Drive
  • High-Speed servo-driven ATC Magazine
  • Take Heavier, Deeper Cuts
  • Precise Cuts & Elimination of Vibration Associated with Belt Drives
650 x 380
14 Tools
20 Tools
8K RPM
15K RPM
1.1 sec
1.9 sec
24000 kg
2205 IPM
DOWNLOAD BROCHURE
CONTACT US
PRICING
KDL 100VM

KPC-30B 500 / 700MM

  • 500 x 300 x 380 XYZ (mm)
  • Fanuc Oi-MF
  • Small Footprint
  • Powerful Cutting with Up to 10 hp Motor
  • Rigid Tapping & Direct Drive
  • High-Speed servo-driven ATC Magazine
  • Take Heavier, Deeper Cuts
  • Precise Cuts & Elimination of Vibration Associated with Belt Drives
650 x 380
20 Tools
30 Tools
10K RPM
15K RPM
0.7 sec
1.7 sec
2500 kg
2205 IPM
