![MT-40V KDL 100VM](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/MT-40V.jpg)
MT30V-TWIN 250 / 320 Between Spindle Centers
- 700x400x320 XYZ (mm)
- Fanuc Control
- 7 Horsepower Spindle Motor
- Two 30 Taper Spindles (CAT & BT30)
- Moving Table
- Twin Spindle Machines Reduce Number of Machines Required
- Temperature Controlled Spindles
- Doubles Product Output – Two Parts Can Be Worked On At the Same Time
- Fixed Table Provides Support for Extremely Heavy Workpieces & Fixtures
- Machines Can Be Fitted with Lift & Carry Transfer Systems for Automatic Un-Manned Fixtures
- Loading & Unloading Takes Place During Machining Cycle Increasing Output & Makes Output More Predictable
- Reduces Machine Capital Equipment Costs
- Cuts in Half the Cost of Peripheral Equipment (Ex: Automation, Robots, Chip Conveyors, Higher Pressure Through & Through, Fixtures, Hydraulics
- Eliminates Thermal Growth & Headstock – Improving Accuracy & Repeatability
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/table-type.png)
1000×400
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/exchange-arm.png)
20 + 20
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/spindle.png)
8K RPM
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/tool-change-time.png)
0.7 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/chip-to-chip.png)
1.7 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/weight.png)
350 kg
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/travel-time.png)
2205 IPM
![MT-40V KDL 100VM](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/MT-40V.jpg)

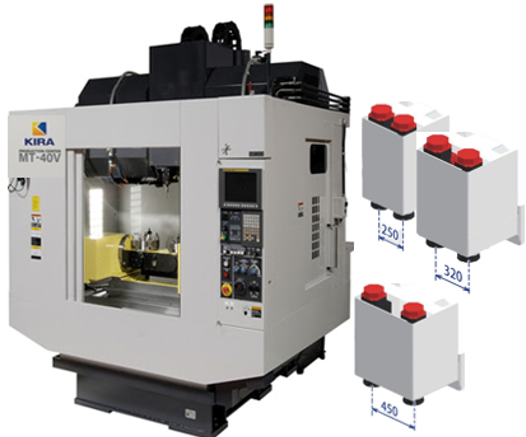

MT40V-TWIN 250 / 320 / 450 BETWEEN Spindle CENTERS
- 700x600x400 XYZ (mm)
- Fanuc Control
- 10 Horsepower Spindle Motor
- Two 40 Taper Spindles (CAT & BT40)
- Moving Tables
- Twin Spindle Machines Reduce Number of Machines Required
- Temperature Controlled Spindles
- Doubles Product Output – Two Parts Can Be Worked On At the Same Time
- Fixed Table Provides Support for Extremely Heavy Workpieces & Fixtures
- Machines Can Be Fitted with Lift & Carry Transfer Systems for Automatic Un-Manned Fixtures
- Loading & Unloading Takes Place During Machining Cycle Increasing Output & Makes Output More Predictable
- Reduces Machine Capital Equipment Costs
- Cuts in Half the Cost of Peripheral Equipment (Ex: Automation, Robots, Chip Conveyors, Higher Pressure Through & Through, Fixtures, Hydraulics
- Eliminates Thermal Growth & Headstock – Improving Accuracy & Repeatability
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/table-type.png)
1000×400
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/exchange-arm.png)
20 + 20
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/spindle.png)
8K RPM
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/tool-change-time.png)
1.2 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/chip-to-chip.png)
2.8 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/weight.png)
350 kg
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/travel-time.png)
1890 IPM
![MC-40V KDL 100VM](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/MC-40V.jpg)
MC 40V-Twin 250 / 320 / 450 Between Spindle Centers
- 500x350x400 XYZ (mm)
- Fanuc Control
- 10 Horsepower Spindle Motor
- Two 40 Taper Spindles (CAT & BT40)
- Moving Column Models
- Twin Spindle Machines Reduce Number of Machines Required
- Temperature Controlled Spindles
- Doubles Product Output – Two Parts Can Be Worked On At the Same Time
- Fixed Table Provides Support for Extremely Heavy Workpieces & Fixtures
- Machines Can Be Fitted with Lift & Carry Transfer Systems for Automatic Un-Manned Fixtures
- Loading & Unloading Takes Place During Machining Cycle Increasing Output & Makes Output More Predictable
- Reduces Machine Capital Equipment Costs
- Cuts in Half the Cost of Peripheral Equipment (Ex: Automation, Robots, Chip Conveyors, Higher Pressure Through & Through, Fixtures, Hydraulics
- Eliminates Thermal Growth & Headstock – Improving Accuracy & Repeatability
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/table-type.png)
1000×400
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/exchange-arm.png)
20 + 20
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/spindle.png)
8K RPM
12K RPM
12K RPM
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/tool-change-time.png)
1.2 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/chip-to-chip.png)
2.8 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/weight.png)
500 kg
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/travel-time.png)
1890 IPM
![MC-40V KDL 100VM](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/MC-40V.jpg)

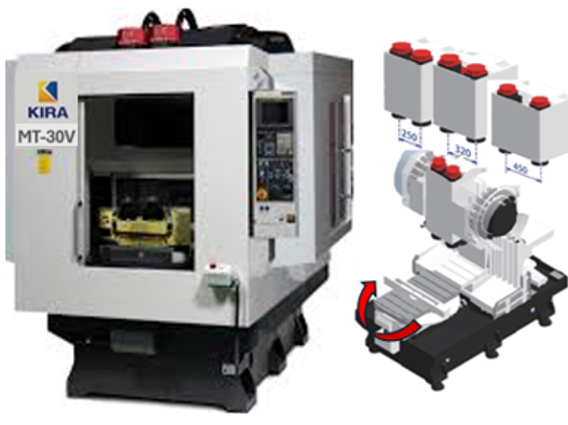

MC30V-Twin 250 Between Spindle Centers with 2 APC 600 Dual Pallet
- 500x300x320 XYZ (mm)
- Fanuc Control
- 7 Horsepower Spindle Motor
- Two 30 Taper Spindles (BT30)
- Traveling Column
- Twin Spindle Machines Reduce Number of Machines Required
- Temperature Controlled Spindles
- Doubles Product Output – Two Parts Can Be Worked On At the Same Time
- Fixed Table Provides Support for Extremely Heavy Workpieces & Fixtures
- Machines Can Be Fitted with Lift & Carry Transfer Systems for Automatic Un-Manned Fixtures
- Loading & Unloading Takes Place During Machining Cycle Increasing Output & Makes Output More Predictable
- Reduces Machine Capital Equipment Costs
- Cuts in Half the Cost of Peripheral Equipment (Ex: Automation, Robots, Chip Conveyors, Higher Pressure Through & Through, Fixtures, Hydraulics
- Eliminates Thermal Growth & Headstock – Improving Accuracy & Repeatability
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/table-type.png)
600×350
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/exchange-arm.png)
20 Tools
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/spindle.png)
8K RPM
15K RPM
15K RPM
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/tool-change-time.png)
1.0 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/chip-to-chip.png)
2.0 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/weight.png)
330 kg
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/travel-time.png)
2205 IPM
![MC-40V KDL 100VM](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/MC-40V.jpg)

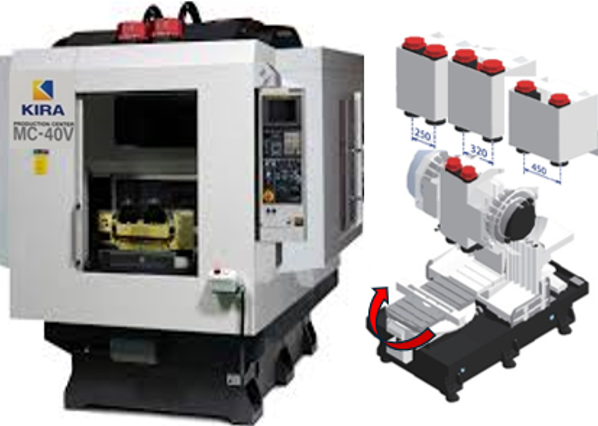

MC40V-Twin 250 / 320 APC 600
- 500x350x400 XYZ (mm)
- Fanuc Control
- 10 Horsepower Spindle Motor
- Two 40 Taper Spindles (CAT & BT40)
- Traveling Column
- Twin Spindle Machines Reduce Number of Machines Required
- Temperature Controlled Spindles
- Doubles Product Output – Two Parts Can Be Worked On At the Same Time
- Fixed Table Provides Support for Extremely Heavy Workpieces & Fixtures
- Machines Can Be Fitted with Lift & Carry Transfer Systems for Automatic Un-Manned Fixtures
- Loading & Unloading Takes Place During Machining Cycle Increasing Output & Makes Output More Predictable
- Reduces Machine Capital Equipment Costs
- Cuts in Half the Cost of Peripheral Equipment (Ex: Automation, Robots, Chip Conveyors, Higher Pressure Through & Through, Fixtures, Hydraulics
- Eliminates Thermal Growth & Headstock – Improving Accuracy & Repeatability
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/pallet-changer.png)
600×350
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/exchange-arm.png)
20 Tools
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/spindle.png)
8K RPM
12K RPM
12K RPM
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/tool-change-time.png)
1.2 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/chip-to-chip.png)
2.8 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/weight.png)
150 kg
each pallet
each pallet
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/travel-time.png)
1890 IPM
![MC-40V KDL 100VM](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/MC-40V.jpg)
MC40V-Twin 250 / 320 APC 940
- 500x350x400 XYZ (mm)
- Fanuc Control
- 10 Horsepower Spindle Motor
- Two 40 Taper Spindles (CAT & BT40)
- Traveling Column
- Twin Spindle Machines Reduce Number of Machines Required
- Temperature Controlled Spindles
- Doubles Product Output – Two Parts Can Be Worked On At the Same Time
- Fixed Table Provides Support for Extremely Heavy Workpieces & Fixtures
- Machines Can Be Fitted with Lift & Carry Transfer Systems for Automatic Un-Manned Fixtures
- Loading & Unloading Takes Place During Machining Cycle Increasing Output & Makes Output More Predictable
- Reduces Machine Capital Equipment Costs
- Cuts in Half the Cost of Peripheral Equipment (Ex: Automation, Robots, Chip Conveyors, Higher Pressure Through & Through, Fixtures, Hydraulics
- Eliminates Thermal Growth & Headstock – Improving Accuracy & Repeatability
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/pallet-changer.png)
940×500
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/03/exchange-arm.png)
20 Tools
![](http://midstatesintl.wpengine.com/wp-content/uploads/2020/12/spindle.png)
8K RPM
15K RPM
15K RPM
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/tool-change-time.png)
1.2 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/chip-to-chip.png)
2.8 sec
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/weight.png)
150 kg
each pallet
each pallet
![](http://midstatesintl.wpengine.com/wp-content/uploads/2021/01/travel-time.png)
1890 IPM
